M5

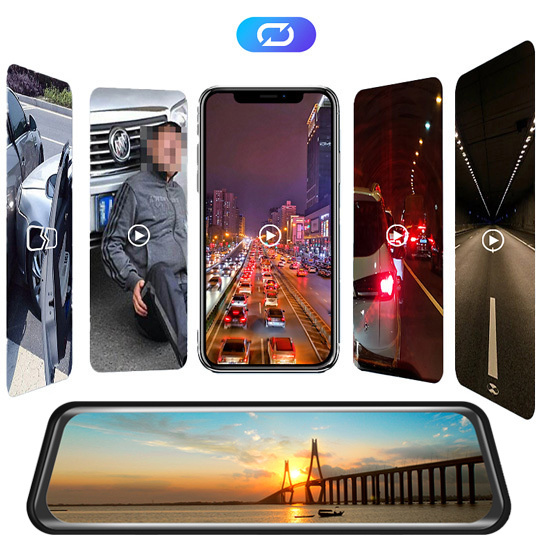

HD double recording
Double recording before and after no blind area, driving at ease double protection, always keep valid evidence for you
voice control
Support voice command operation capture, lock without your hands-on operation, without waking up can quickly respond, allowing you to focus on driving
Loop Video
Automatically open the loop video, when the memory is full automatically delete the earliest recorded video, save the new video, recycling memory space.
Starlight Night Vision
The recorder adopts a more professional CMOS image sensor chip, which can easily cover multiple lanes, automatically fill light at night, and make clear and delicate imaging day and night.
24H time-reduced monitoring
After the time-saving video recording is enabled, the parking monitor will perform a mode video recording of 1 frame per second to ensure the integrity of the recording content and save a lot of memory space.
Technical Specifications
Product Function Parameters Overview
CPU | AS230D |
Before Sensor | GC4653 |
After Sensor | 1080P Sensor (customer choice) |
Reversing image | Support |
Front Video Resolution | 3840*2160 |
Rear video resolution | 1920*1080 |
Display | 9.66 "Ultra HD IPS Screen 1920*480 Resolution |
Touch | Support |
DDRM | 1G bit \ 128M Byte |
SPI NOR Flash | 128M bit \ 16M Bytes |
Audio | Yes, support recording |
Speaker | Yes, support sound playback |
G Sensor | Optional |
RTC | Yes, built-in system clock |
| SDHC Class10(8GB ~ 128GB), speed above C10 | |
Key | 1 Key (Power) |
Battery | button battery |
File Format | Image file format for TS, photo format JPG |
WiFi | Support (Wind Recorder) |
Voice Control | Support |
electronic dog | Not supported |
Driving assistance | Support BSD,ADAS,LCA |
Language | Support for multiple languages |
Video
M5 streaming media recorder general manual
-
File size: 10.1MB
