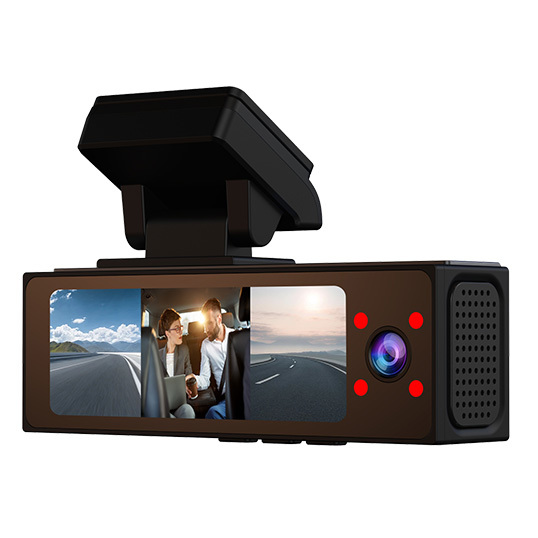

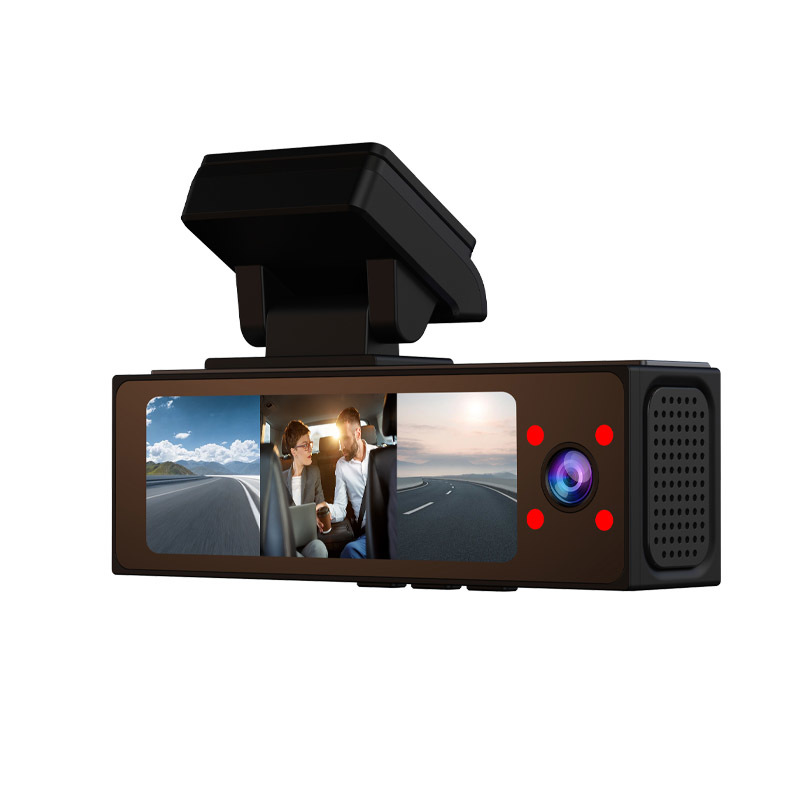

HD three recording

The front, middle and rear three cameras work at the same time to record the driving process more abundantly

Mobile phone WIFI interconnection

The recorder has its own WiFi mobile phone. Open the recorder APP and connect the recorder WIFI to check the playback video in real time and download and playback it to the mobile phone.


Loop Video

Automatically open the loop video, when the memory is full automatically delete the earliest recorded video, save the new video, recycling memory space.

voice control

Support voice command operation capture, lock without your hands-on operation, without waking up can quickly respond, allowing you to focus on driving


24H time-reduced monitoring

After the time-saving video recording is enabled, the parking monitor will perform a mode video recording of 1 frame per second to ensure the integrity of the recording content and save a lot of memory space.

Technical Specifications

Product Function Parameters Overview

Specifications	Parameter Content
Appearance	/
Number of lenses used	3 lenses
Front camera	SC2336 200W FOV140 F1.8 2 4P
Interior Infrared	SC101AP light, infrared four lights
LCD Display (Size/Type/Pixel)	3.2 inch
Parking monitoring	Parking Monitor Shrink
Inductor	Support gravity sensing
Video Size	Before recording 1920x 1080P after recording 1280x 720P car 1280X720P
Picture angle of view	140 degree ultra wide angle
Voice Control	Support
WIFI	Supported, Wi-Fi 802.11b/g/n
Video compression format	H264
Video Frame Rate	25fps
Microphone/Speaker	Support
Video Format	Front/back recording MOV, AVI in car
Audio Format	PCM
Power supply mode	Car charging/pressure reduction line three-core
Battery Type	Lithium battery 150MA
Power Input Parameters	5V-2.5A
Language	Chinese Simplified/Russian/English/Multi-language
Default Language	Chinese
Extended Memory	TF card	16G-128GB CLASS10
Built-in memory	2Gbit
Working temperature	minus 25 to 70 degrees
Storage temperature	minus 30 to 80 degrees


Video

Q7 Hidden Recorder General Manual

Q7-User-Manual

File size: 9.5MB
